Whirlpool washer F9E1 code: what it means and how to fix it

By Daniel Brooks Home maintenance writer and appliance troubleshooting specialist based in Charlotte, NC

Quick answer

Seeing F9E1 on your Whirlpool washer's display means the machine timed out trying to drain, water isn't leaving the tub fast enough for the control board's liking. Check the drain hose and pump before assuming you need a repair.

Safety first

Unplug the washer and shut off the water supply before accessing the drain hose or pump area. Have a shallow pan ready, since residual water in the line can drain out as soon as an access panel is opened.

What F9E1 means

Code	What it means	Common causes	What to check
F9E1	Long-drain error, the washer isn't draining within its expected time window	Drain hose kinked or blocked, drain hose inserted too far into the standpipe or laundry tub, a clogged or failing drain pump	Check the drain hose's position and length first, then look for kinks or blockages along its full run, then check the pump if it's accessible on your model

Whirlpool's own product-help documentation describes F9E1 as a long-drain fault and names the same two starting points regardless of whether the washer is a top-load, front-load, or all-in-one washer-dryer model (Whirlpool: F9E1 - Error Code, Top Load Washer; Whirlpool: F9 E1, Front Load Washer): the drain hose's position in the standpipe or tub, and whether the drain pump needs cleaning. If your washer's showing something other than F9E1, the full Whirlpool washer code table covers what this site has confirmed so far.

Work through it in order

Check the drain hose position

Whirlpool's own spec calls for the drain hose to extend no more than about 4.5 inches into the standpipe or laundry tub, with a gap left around it so air can move freely. Pushed in too far, or sealed tight against the pipe with no air gap, the hose can restrict drainage the same way a physical blockage would, even with a perfectly clean pump.

Check the full length of the drain hose for kinks or blockages

A kink partway along the run restricts flow just as effectively as one at either end, so a quick glance at the connection points alone can miss the actual problem. Trace the hose from the washer to the wall or standpipe connection.

Check the drain pump

Access varies by model. Some Whirlpool washers have a small filter panel at the front base, similar to the layout other brands built on the same drive platform use; others don't offer an owner-accessible filter at all. Check your specific model's manual before assuming a panel exists, and clean out anything caught in it, lint, coins, small fabric items, if it does.

If the hose position, hose length, and pump are all confirmed clear and F9E1 persists

A failing drain pump itself is the likely remaining cause at this point. That's typically where DIY troubleshooting stops, since testing and replacing the pump means opening the cabinet.

Is this the same as Maytag's drain-related codes?

Whirlpool Corporation owns Maytag, and shared-platform models can display the same drain-related codes with the same meaning. F9E1 specifically hasn't been independently confirmed against Maytag's own documentation on this site yet, so treat any overlap as a reasonable starting point rather than a confirmed match until you've checked your Maytag model's own manual directly.

When to call a technician

Call a technician if F9E1 persists after a confirmed correct hose position, no kinks along its full length, and a checked or cleaned pump.

Photos for this guide

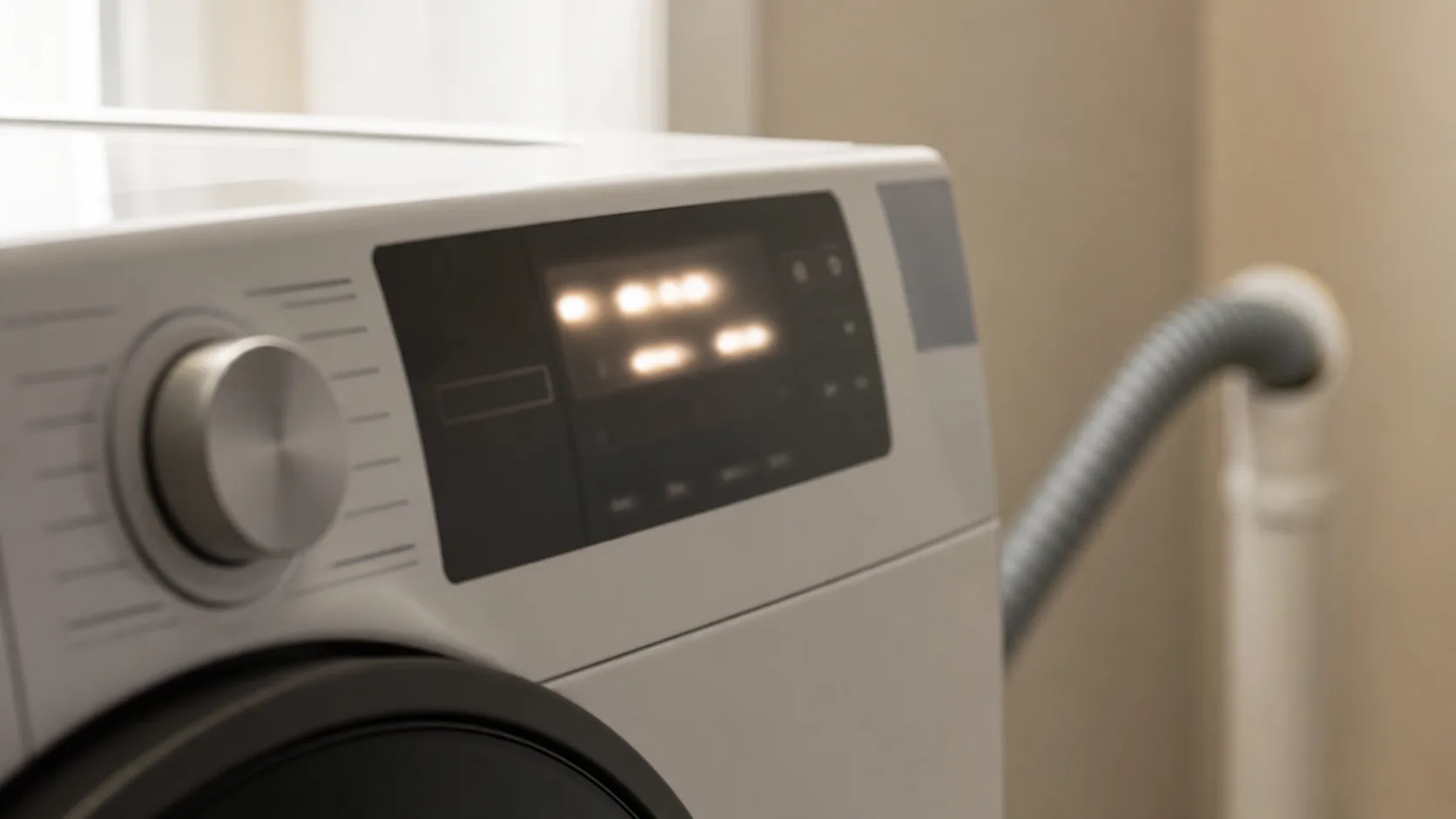

Whirlpool washer display showing the F9E1 error code. — Real photo of a Whirlpool washer display showing F9E1, blurred and unreadable per the project's photo style.

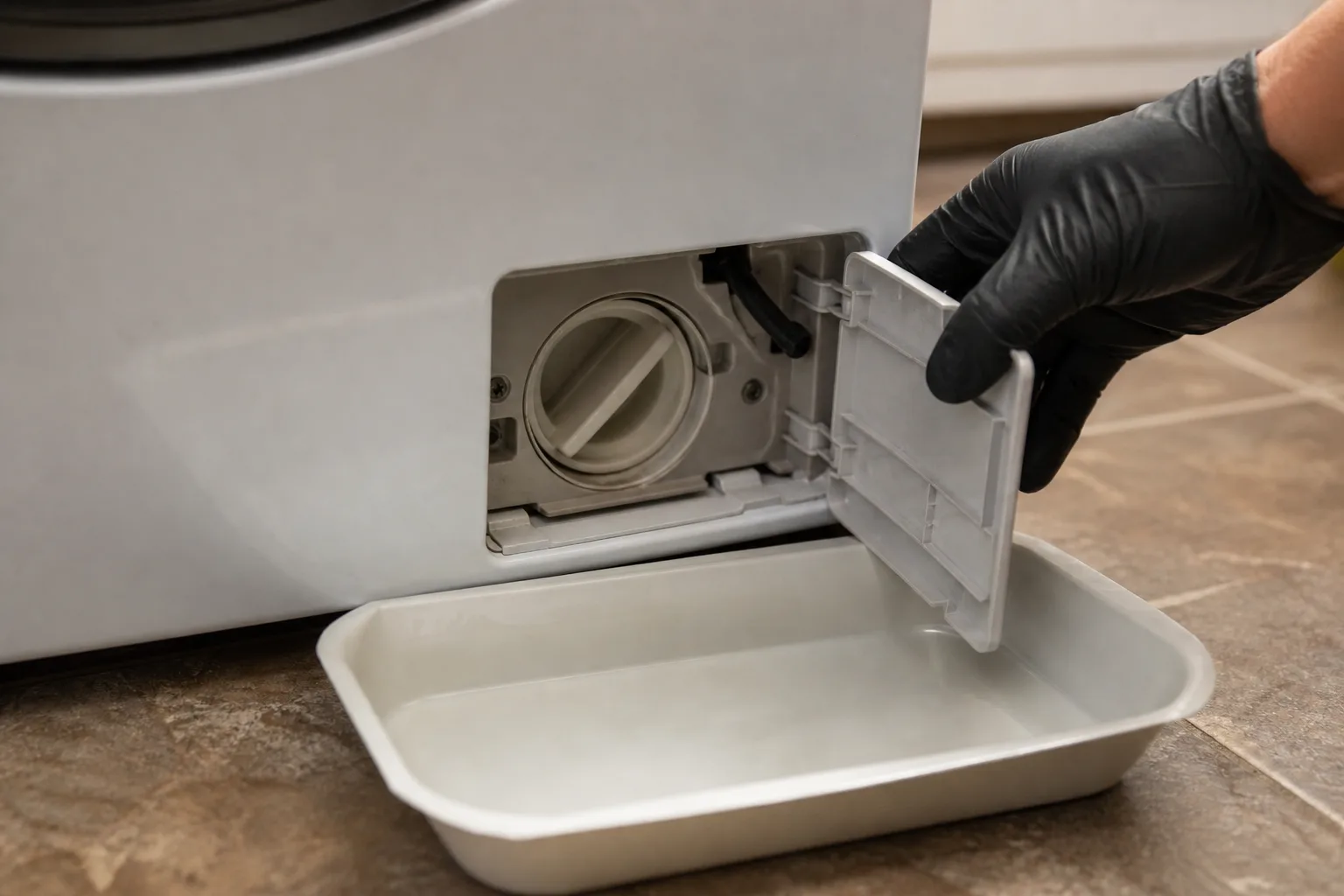

Whirlpool washer drain pump filter access used to clear an F9E1 error. — Real photo of a drain pump filter access panel open, or a drain hose being checked at the back of the washer.

FAQ

What does F9E1 mean on a Whirlpool washer?

F9E1 means the washer detected a long drain, it isn't draining within the time window the control board expects. Checking the drain hose's position and length, then the pump, resolves the majority of cases.

Where is the drain pump filter on a Whirlpool washer?

It depends on the model. Some Whirlpool washers have a small access panel at the front base, others don't offer an owner-accessible filter at all. Check your model's manual for the exact layout before assuming a panel exists.

Can a kinked drain hose alone cause an F9E1 error?

Yes. A kinked or blocked hose restricts flow enough to trigger a long-drain fault even with a clean pump. Check the hose's full length, not just the connection points, and confirm it isn't inserted more than about 4.5 inches into the standpipe.

I've checked the hose and pump and F9E1 still shows. What's next?

If the hose position is correct, the hose is clear along its full length, and the pump is clean or was never accessible to check, the pump itself may be failing. That's a point where a technician's diagnosis is more reliable than repeated resets.

For a similar drain-time error on a Kenmore washer, Kenmore washers have historically been built on Whirlpool platforms, and F21 works through much the same drain-path logic.
